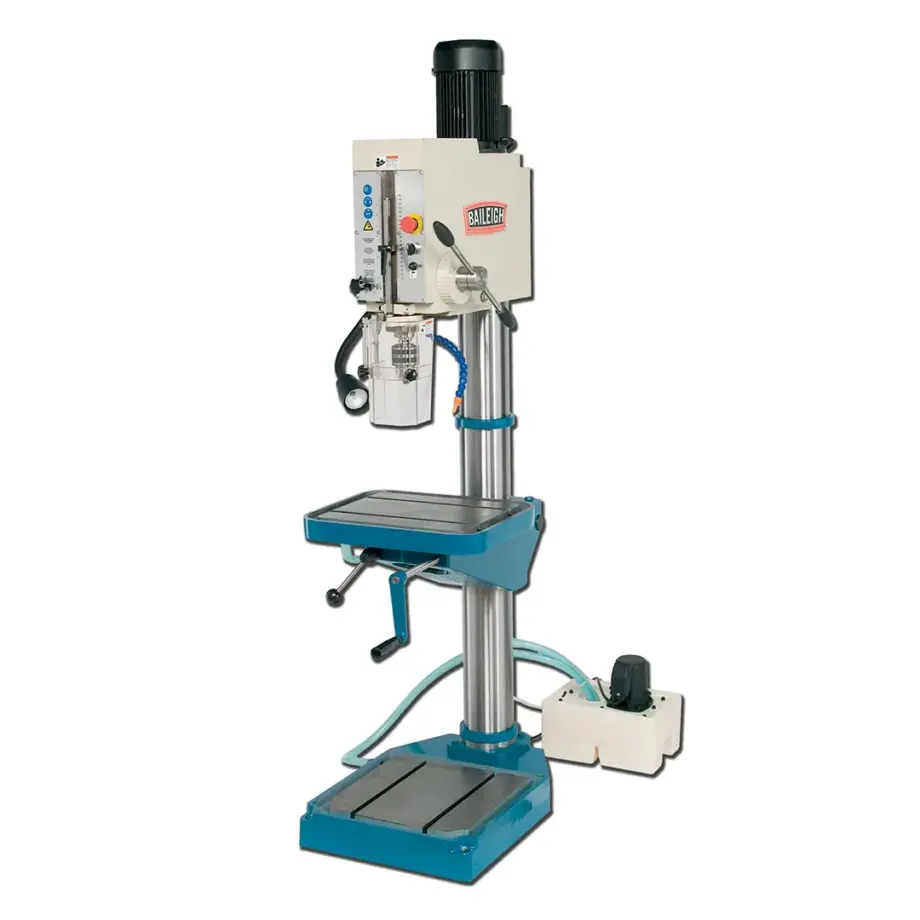

Baileigh DP-1500G Gear Driven Drill Press

Built for demanding industrial applications the 20” Baileigh DP-1500G Gear Driven Drill Press features a heavy-duty cast iron base paired with a robust steel column to deliver exceptional rigidity and stability. This solid construction minimizes vibration and deflection, allowing the machine to maintain accuracy even during high-feed, large-diameter drilling operations.

Designed to handle tough materials and continuous use, the DP-1500G provides the strength and reliability required for serious heavy-duty drilling tasks in professional shop environments.

• Powered by a 3.5 HP motor operating on 400V three-phase power
• Maximum drilling capacity of 1.5″ in mild steel
• Auto-tapping capability up to 1.3″
• Variable-speed drill press with a continuous speed range from 108 to 1,800 RPM for precise control
• Standard MK-4 Morse taper efficiently transfers power from the gear head to the workpiece
• Heavy-duty cast iron base and rigid 5.5″ diameter steel column minimize flex during demanding operations

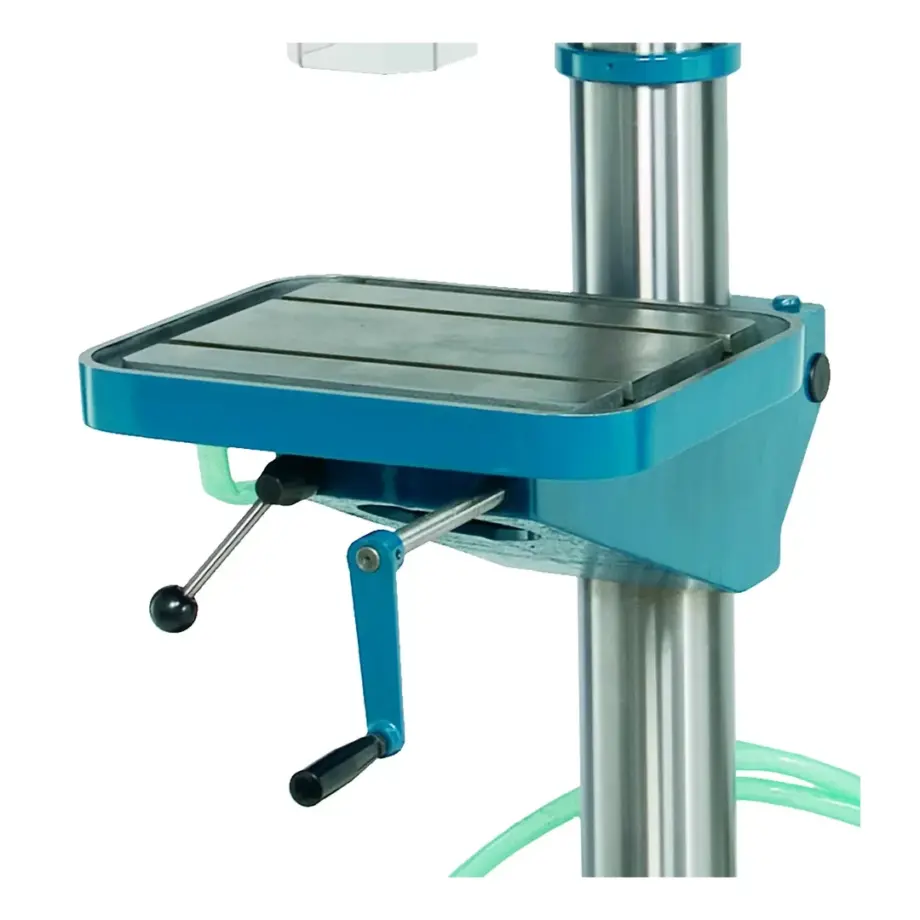

• Large 20″ × 16″ worktable with oversized T-slots for secure mounting of vises and fixtures

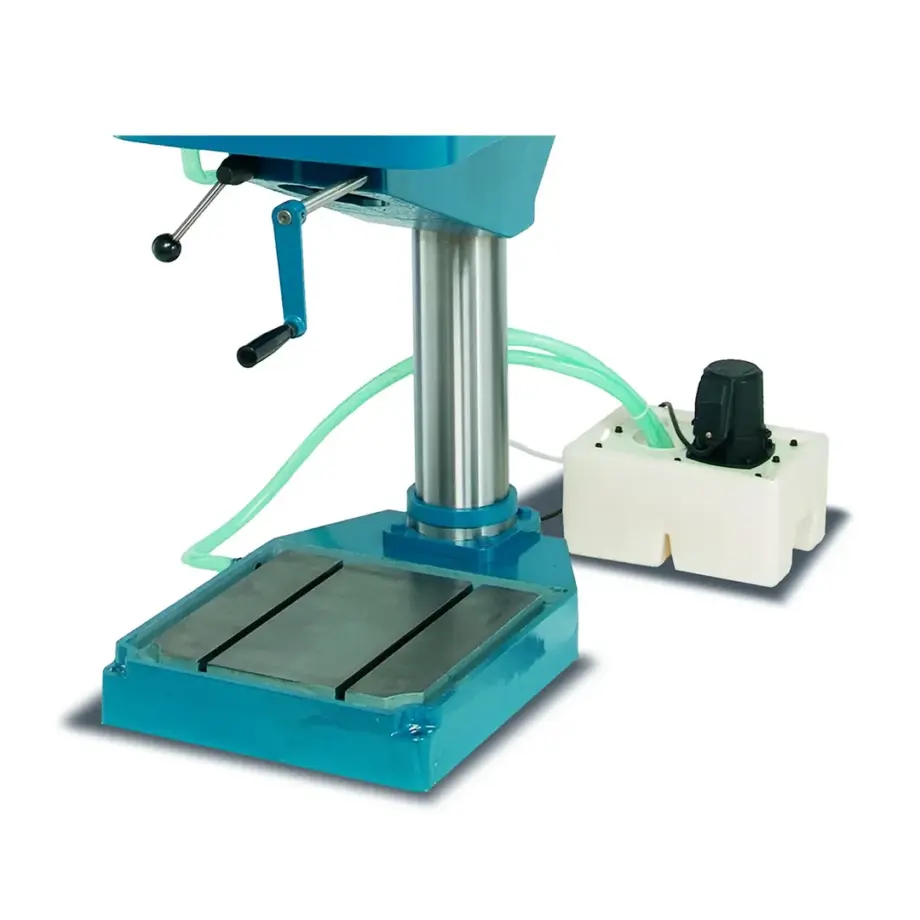

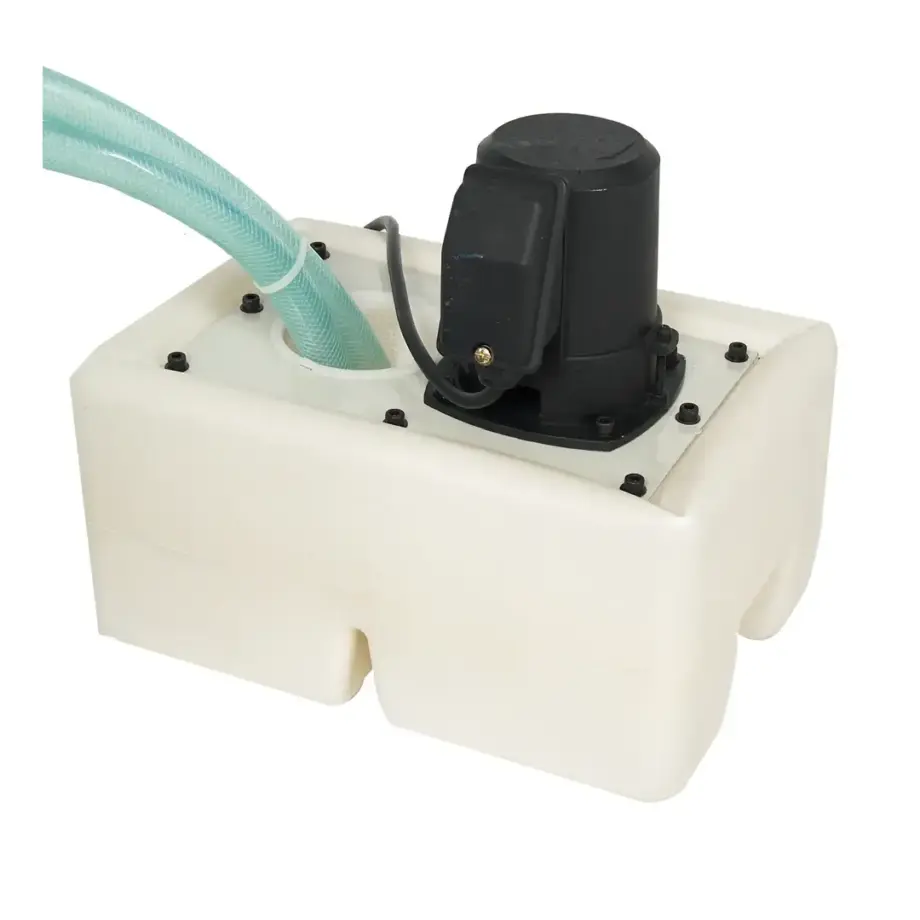

• Comes standard with a chuck, coolant system, and flexible halogen work light—no optional upgrades required

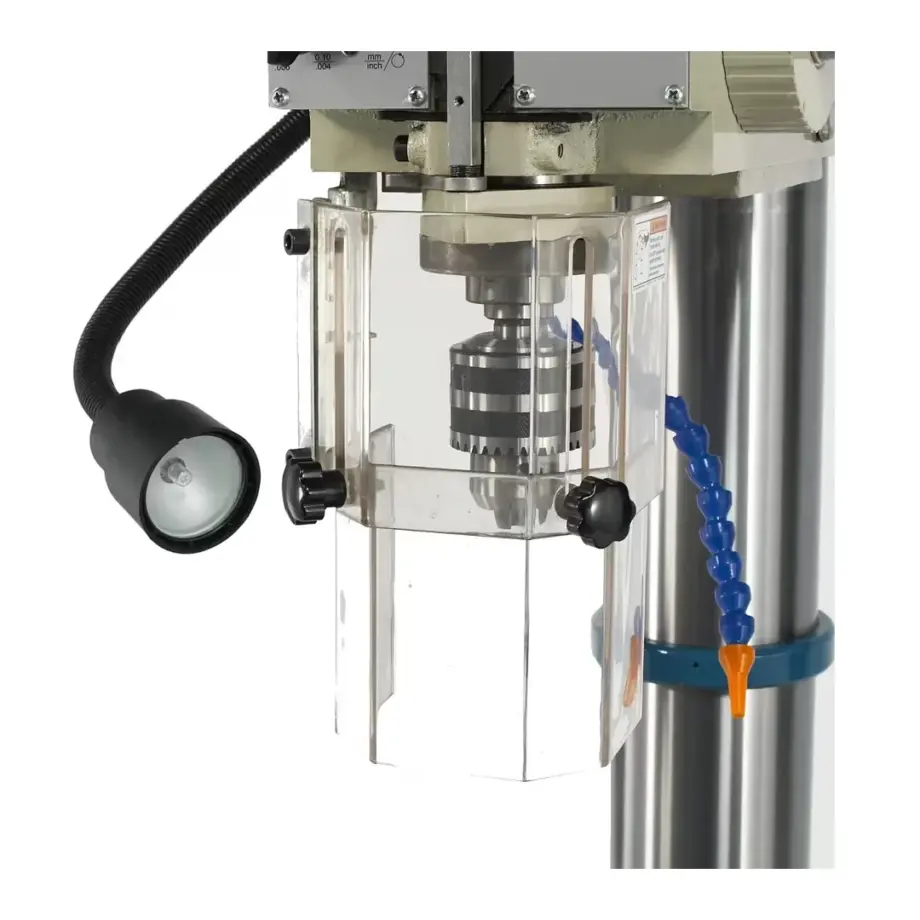

• Protective shield surrounding the drill head enhances operator and shop safety
