Name: Baileigh BB-4012F Sheet Metal Brake 1016mm
SKU: BA9-1000399
Price: 4195.00 EUR
Availability: BackOrder

Baileigh BB-4012F Sheet Metal Brake 1016mm - Image 2

Baileigh BB-4012F Sheet Metal Brake 1016mm - Image 3

Baileigh BB-4012F Sheet Metal Brake 1016mm - Image 4

Baileigh BB-4012F Sheet Metal Brake 1016mm - Image 5

Baileigh BB-4012F Sheet Metal Brake 1016mm

BA9-1000399

0 out of 5

( 0 reviews )

4 195,00 € 3 342,63 €

3 342,63 € excluding TAX.

Available on backorder, delivery time 7-14 days

Estimated delivery to :

Choose a variation to see estimated delivery.

Delivery country

No Extra Fees or Import Duties for EU Orders

14-Day Returns: 100% Satisfaction Guaranteed

Safe and Secure SSL Encrypted Payments

Description

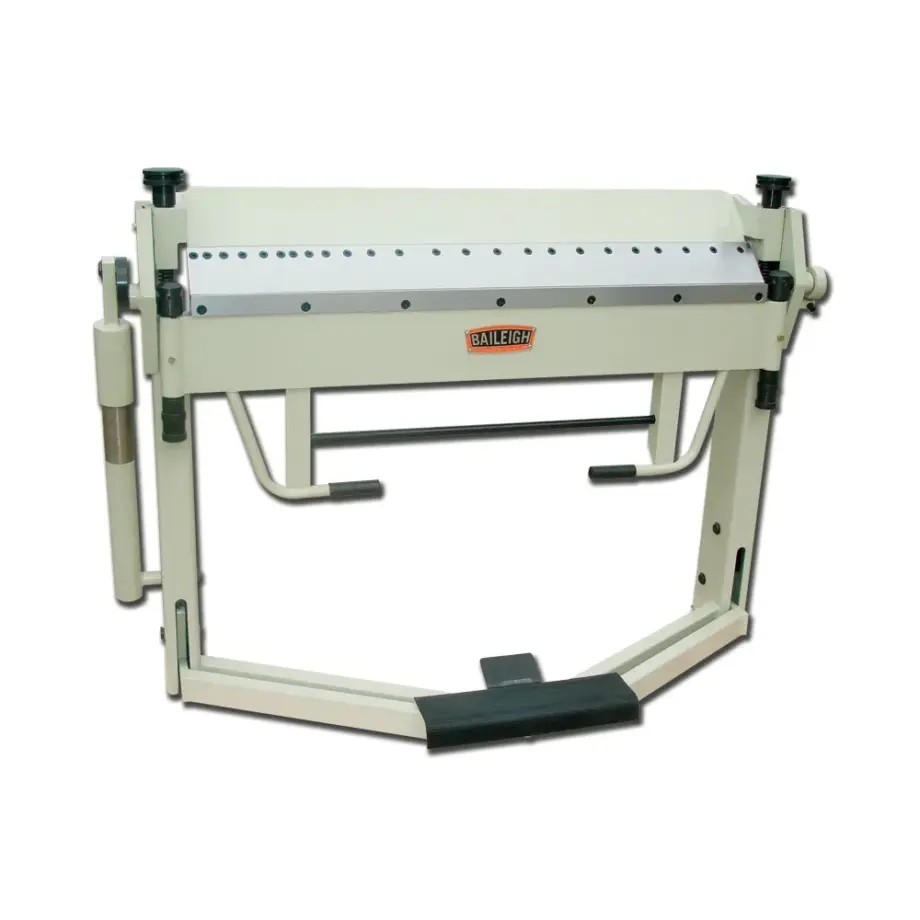

The Baileigh BB-4012F Box and Pan Brake lets you clamp sheet metal with a convenient foot control, keeping both hands free for precise material positioning. Perfect for production runs, it combines strength, versatility, and accuracy.

Features:

Bends up to 12-gauge mild steel across its full 40” length
Stop rod enables repeatable bends for consistent production results
Hardened bending die provides long-lasting and high-quality performance

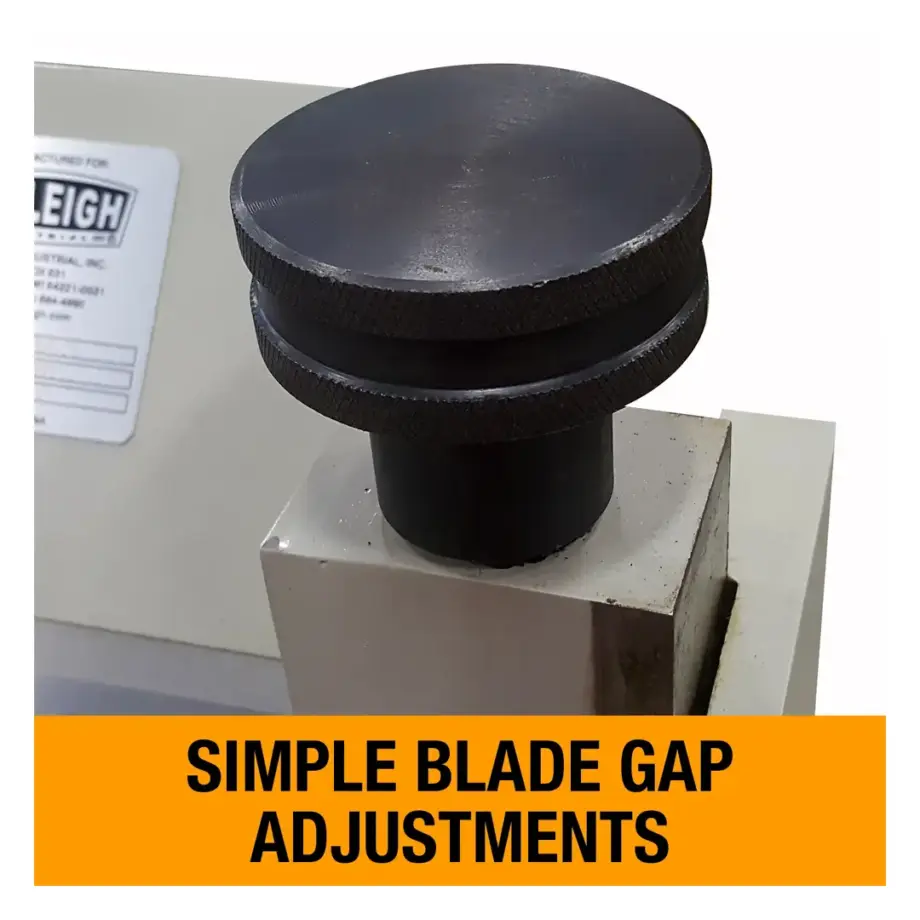

Blade gap adjustment allows you to bend different gauges of sheet metal accurately
Spring-loaded cylinder assists in lifting the apron which is particularly useful at full capacity

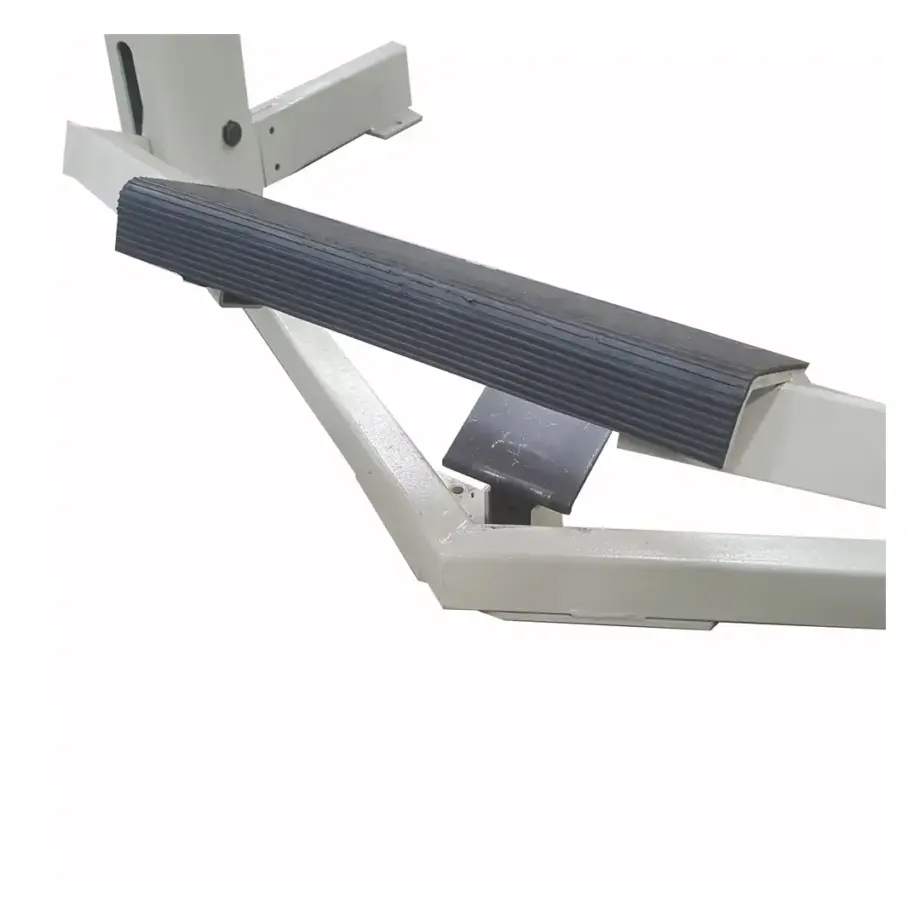

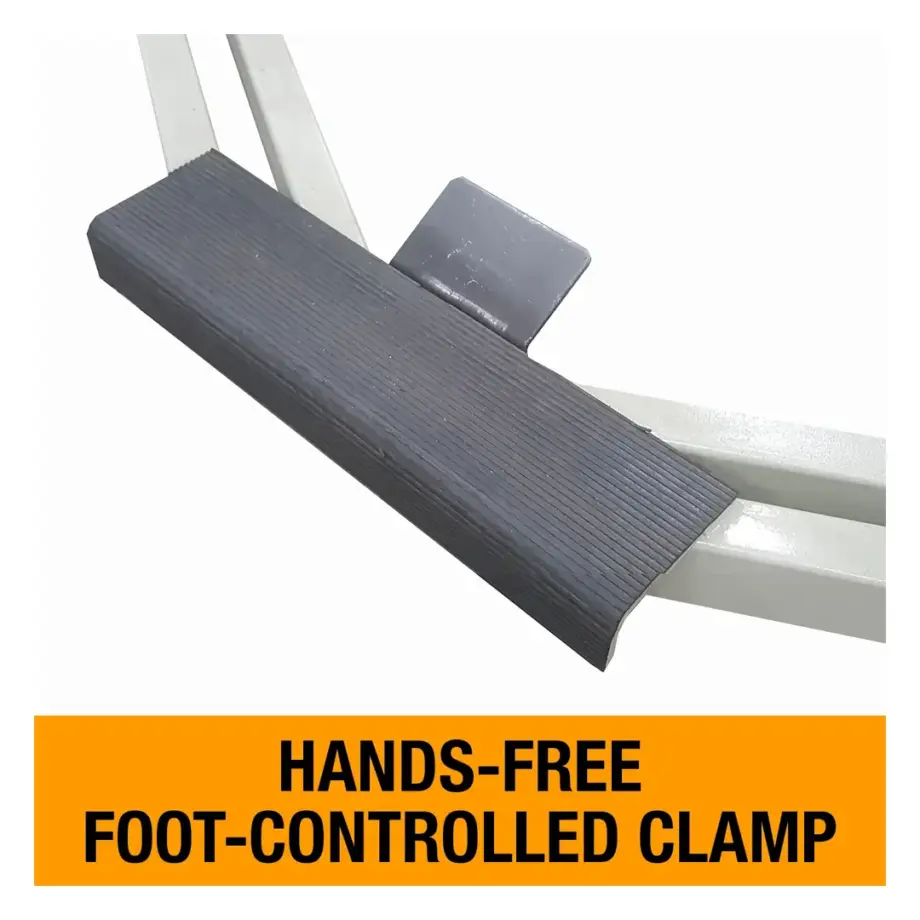

Foot-controlled clamp frees your hands to properly position the material before clamping
Comes with hardened fingers in various widths to create tanks, pans, boxes and more
Built with a fully welded heavy steel framework to minimize flex and deformation

Specifications

Forming width	40” (1016 mm)
Bend Material Thickness	12 ga. (2.65 mm) mild steel
Bend Material Thickness	16 ga. (1.52 mm) stainless steel
Bend Angle	0 – 135°
Maximum Bar Lift	1.85” (47 mm)
Box Depth	2.5” (63.5 mm)
Dimensions	1347 x 842 x 1130 mm
Weight	320 kg
Warranty	1 Year
