Jet 719AS Mortising Machine
708572KM
2495,00 €
Price includes VAT.
1988,05 € excluding TAX.
Tax Free Shopping
Tax Free Shopping
At Jetshoptools.com we offer you a secure, fast and easy way to place Tax-Free orders in
1.
Add products to Cart
Add products to your shopping cart.
2.
Proceed to Checkout
Add your Company details and
3.
Choose Invoice Payment
Choose
You will receive tax-free invoice by email in 24 hours. Your order will be delivered after successful payment.
2067,72 € without VAT
Available in warehouse
Ready to ship:
1 pcs
Shipping Info
Shipping time for products in stock:
Baltic countries:
Nordic countries:
Rest of Europe:
UK and Rest of the World:
No Extra Fees or Import Duties for EU Orders
14-Day Return Policy: 100% Satisfaction Guaranteed
Safe and Secure SSL Encrypted Payments
Description
Description

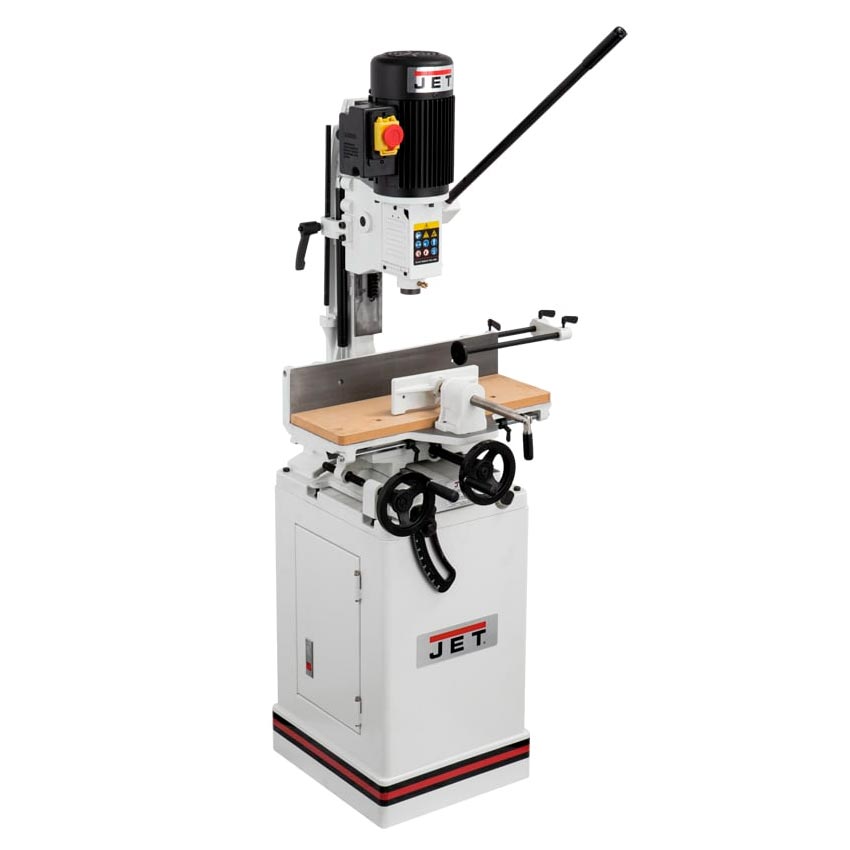

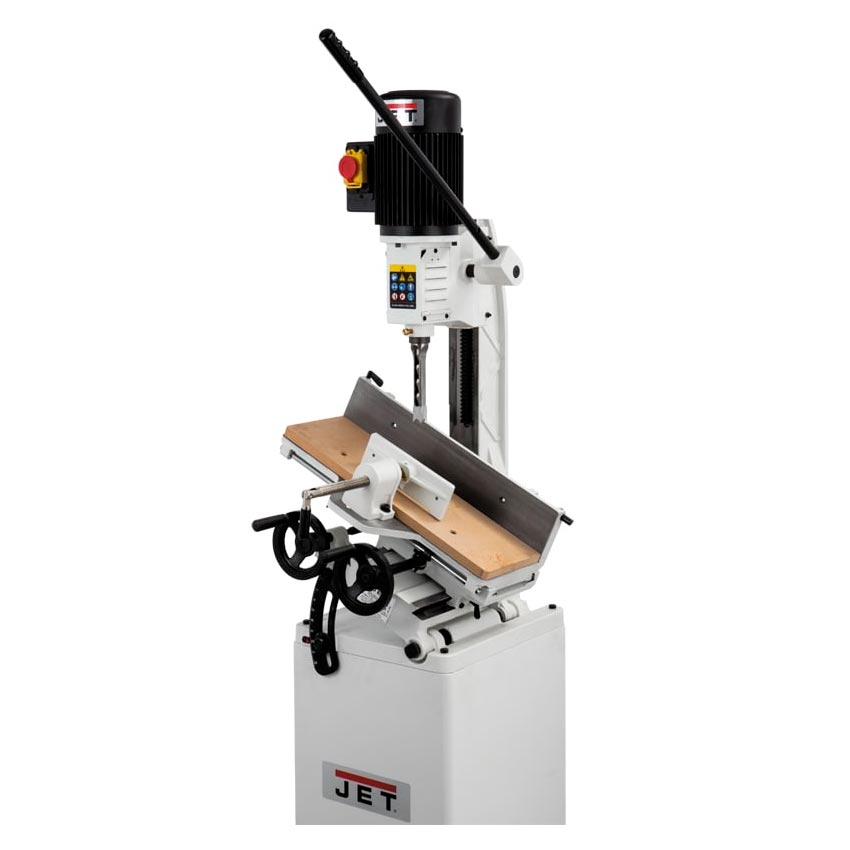

Jet 719AS is a heavy-duty professional mortising machine equipped with sliding and 35° tilting cast iron table for angled mortising and powerful 1300W motor which allows you to produce up to 25 mm wide mortises in one go.
Sliding table can be easily moved from front to back and side to side with large cast iron handles for ease of repetitive cuts. Table features adjustable material stop and travel stops which allows you to set table travel distance from left to right for intensive and precise production work.
By releasing four (4) bolts you can rotate the drilling head 180° from front to back, allowing you to create mortises on doors and other larger stock without the table getting in the way. Heavy and durable cast iron construction and maintenance-free induction motor are built for lifelong service.
Comes with 5/8”, 3/4”, 13/16” and 1” collets which allows you to use all kinds of chisel mortiser bits with different holding diameters.
Features:

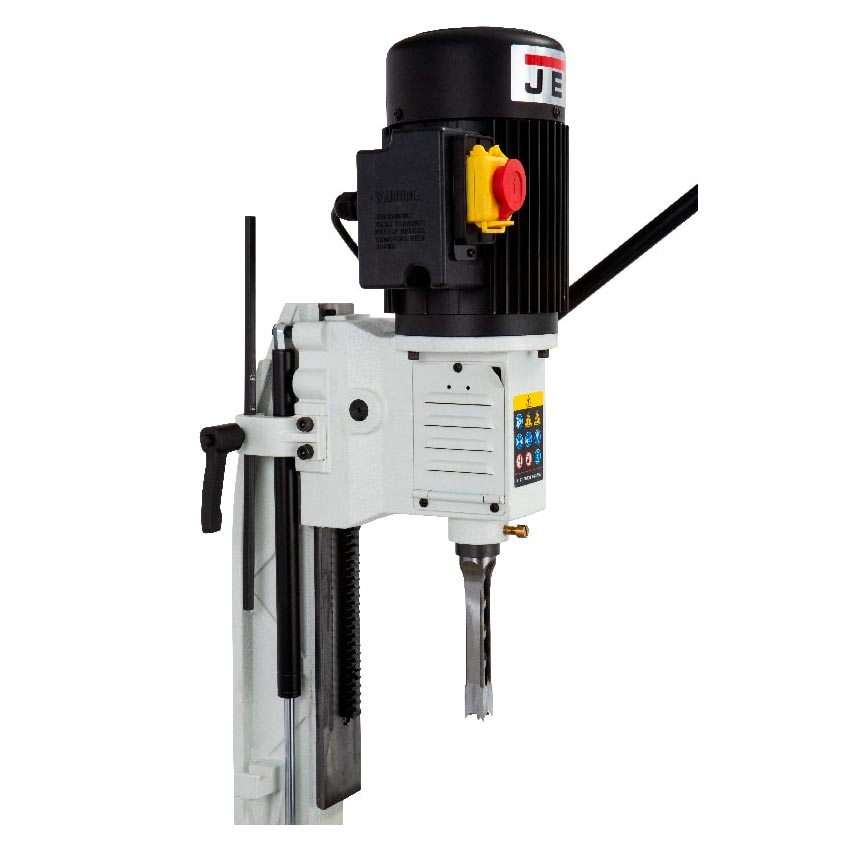

- Powerful, quiet and long-lasting 1300W induction motor
- Large heavy-duty cast iron table with MDF-top

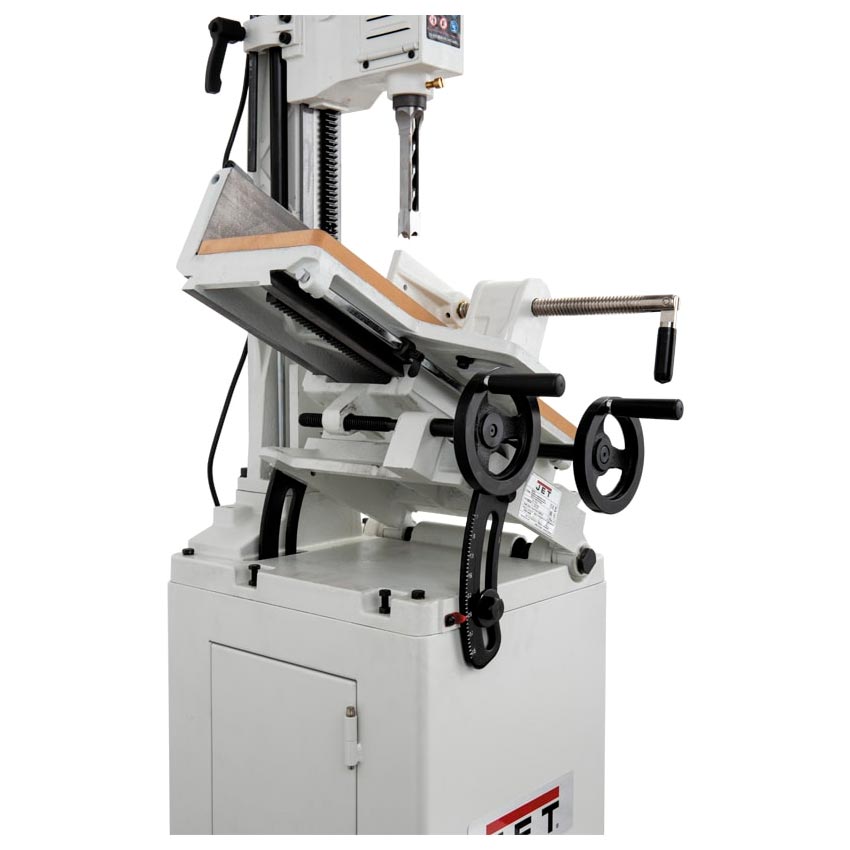

- 0-35° tilting table for producing angled mortises

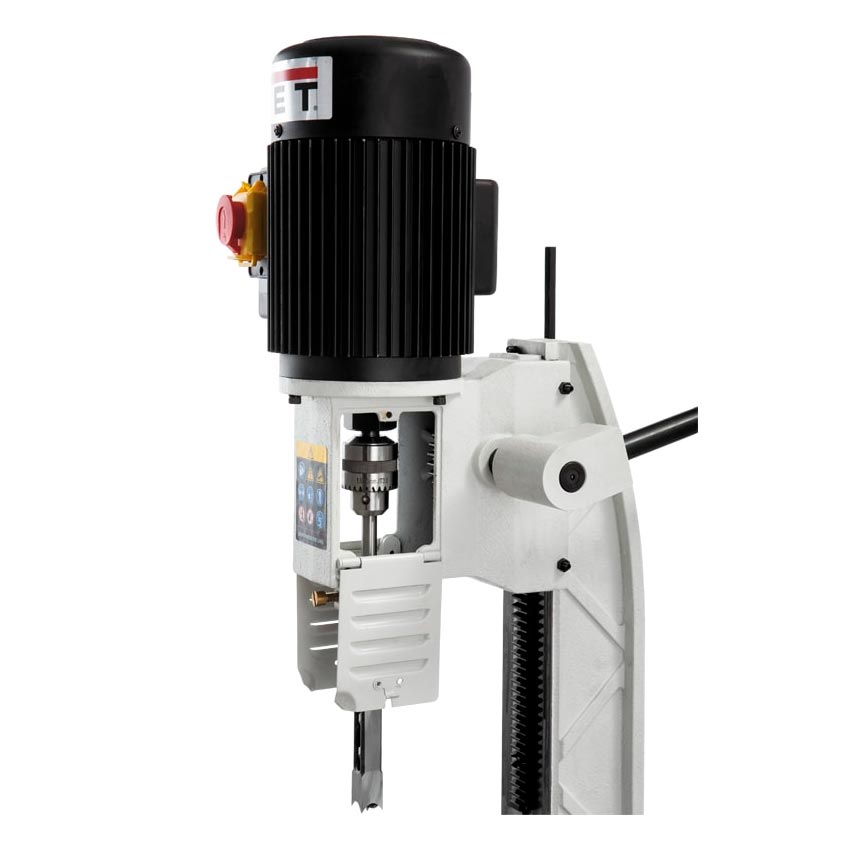

- 180° Rotating drilling head for versatile use
- Cast iron clamp for secure workholding during operation
- Cast iron fence with adjustable material stop for production work
- Adjustable handle with gas cylinder for smooth operation
- Rack and pinion gear head system for long-lasting service

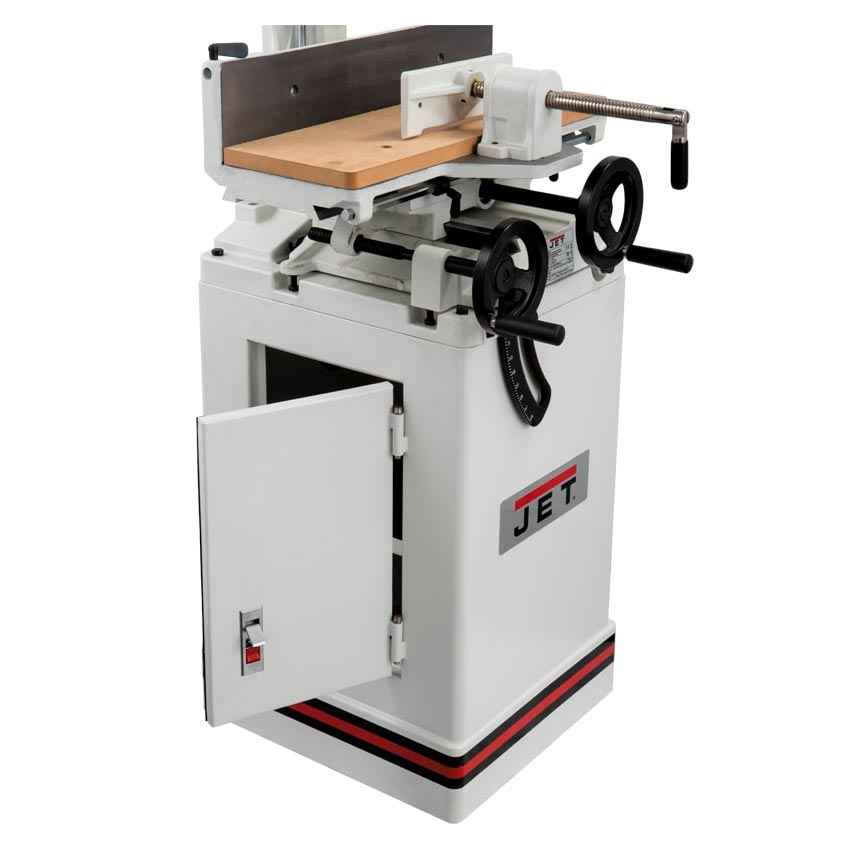

- Steel stand with lots of storage space for mortising bits and accessories
- Included 5/8″, 3/4″, 13/16″ and 1″ collets allows you to use all kinds of mortising bits
Technical details
| Motor | 1300W S6 40% 750W S1 100% |
|---|---|
| Voltage | 230V (1-Phase) |
| Speed | 1450rpm |
| Workpiece height max. | 195mm |
| Workpiece width max. | 180mm |
| Drilling capacity | 3 – 25mm |
| Spindle travel | 130mm |
| Throat depth | 115mm |
| Table size | 520 x 180mm |
| Table tilting | 0-35° |
| Longitudinal feed | 400mm |
| Cross feed | 100mm |
| Side fence | 520 x 90mm |
| Dimensions | 650 x 500 x 1760mm |
| Weight (package) | 110kg (132kg) |
| Warranty | 5 Years 2 Years in professional use |
| Made In | Taiwan |
